Designed for production & lab tests polymerizes inks, varnishes, adhesives and resins

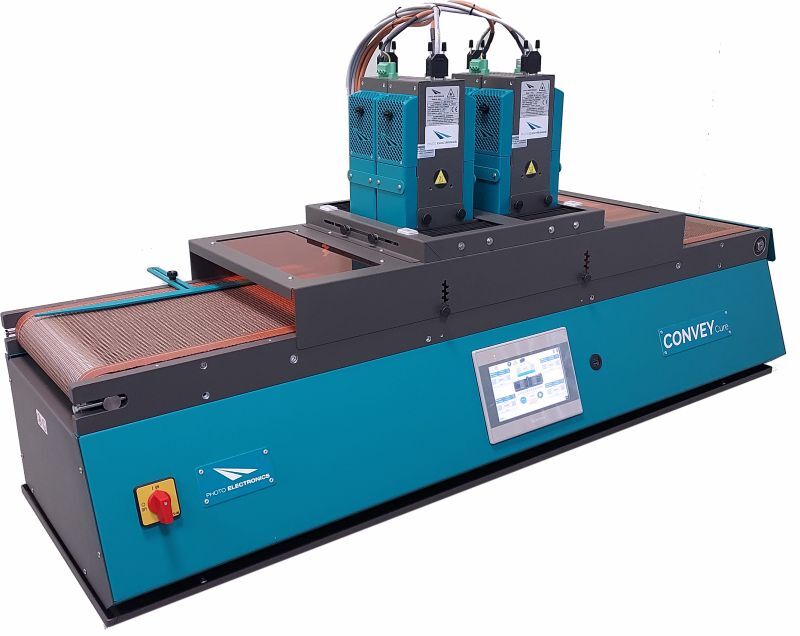

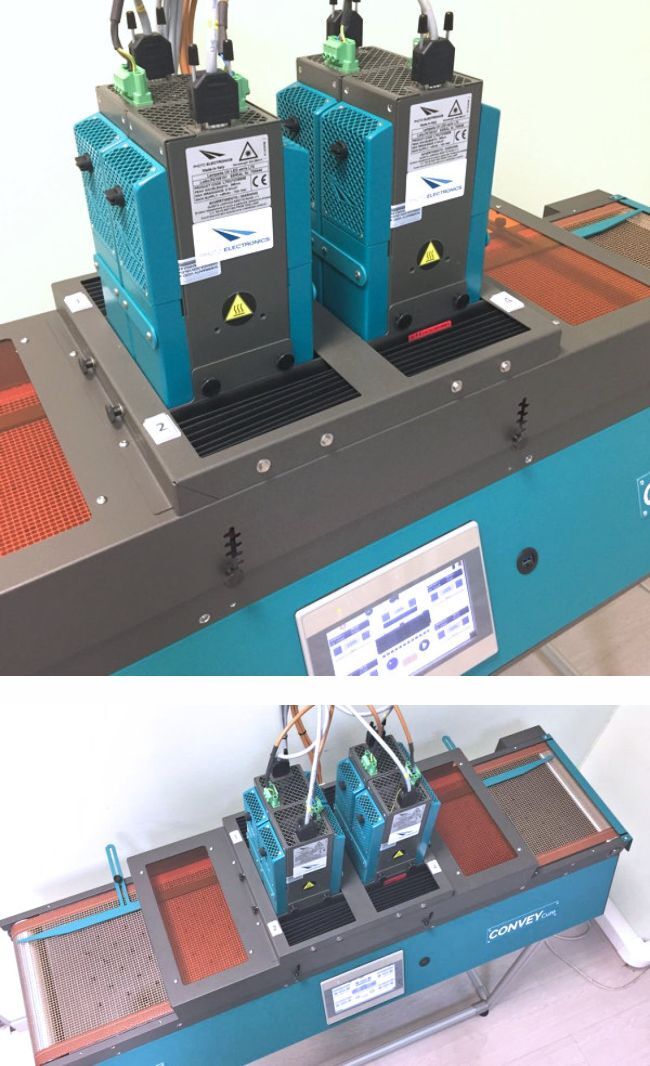

CONVEY CURE is designed for the installation of 1, 2 or 4 DROLED UV LED lamps, L70 series.
The lamps can be positioned offset or aligned, to irradiate different polymerization widths.
CONVEY CURE is useful in many and different applications, especially in curing processes that require the presence of mixed wavelengths in a single system.
The possibility to adjust the number, height and intensity of the LED lamps, as well as the speed and direction of the belt, make it a versatile and easy to use system.
CONVEY CURE 1300 compared to the version 800, allows to reach a greater polymerization intensity and a wider working area.
PDF Catalog
Download our product catalogue clicking here
Ask for information
Our experts will help you find the solution that best suits you.
Tecnical specifications
-
PLC with 7" display for lamp parameters set up (on/off + intensity) + conveyor belt (direction/speed)
-
Vacuum table for holding light objects + perforated conveyor in Teflon, resistant to UV radiations, standard or customized speed
-
Removable and adjustable centering guides
-
Up to 4 UV LED DROLED L70 lamps with different wavelengths
-
Tunnel for lamps support with adjustable position
-
Lamps height manual regulation with 5 mm steps
-
Conveyor belt forward speed and direction adjustment
Fields of application
-
LED Curing of inks, varnishes, adhesives and resins
-
Production
-
Laboratory tests
-
R&D activities
DIMENSIONS
